随着车辆电气化、智能化程度不断提升，车载电子系统日益复杂，信号传输的稳定性、可靠性及集成化需求愈发迫切。为满足各类低压信号连接场景对高密度、高可靠性、易集成的需求，瑞可达凭借深厚的技术积累与工艺创新，正式推出32芯焊板低压信号连接器，该产品插座端提供直式与弯式两种结构，为不同空间布局与布线走向提供灵活选择，以卓越的信号完整性、紧凑的设计与灵活的安装方式，为整车电气架构提供稳定可靠的信号连接解决方案。
With the continuous advancement of vehicle electrification and intelligence, on-board electronic systems have become increasingly complex, and the demands for stability, reliability and integration of signal transmission have grown ever more pressing. To meet the needs for high-density, high-reliability, and easy integration in various low-voltage signal connection scenarios, Recodeal leverages its profound technical expertise and process innovation to officially launch the 32-pin board-mounted low-voltage signal connector. The connector’s socket end is available in both straight and right-angle configurations, offering flexible choices for different spatial layouts and wiring paths. With excellent signal integrity, compact design, and adaptable installation, it provides a stable and reliable signal connection solution for vehicle electrical architectures.
01
产品简介
Product introduction
32芯焊板低压信号连接器采用高密度布局与焊接式连接设计，在有限空间内实现多路信号的高效、可靠传输。产品插座端创新性地提供直式与弯式两种结构，可灵活应对前装、侧装、上下安装等不同场景，优化线束走向，节省布置空间。具备优异的电气性能与机械强度，适用于车身控制、电机电控、多合一和电池包等系统的信号连接。支持防呆设计，提升装配效率与正确率，为客户提供稳定、便捷的低压连接体验。
The 32-pin board-mounted low-voltage signal connector adopts a high-density layout and soldered connection design, enabling efficient and reliable multi-channel signal transmission within limited space. The product innovatively offers both straight and right-angle socket configurations, flexibly adapting to various installation scenarios such as front, side, top, or bottom mounting, optimizing harness routing and saving layout space. It offers excellent electrical performance and mechanical strength, making it suitable for signal connections in body control, motor electronic control, X-in-1, battery packs and more. It supports fool-proofing design to improve assembly efficiency and accuracy, providing customers with a stable and convenient low-voltage connection experience.
02
产品亮点
Product Advantages

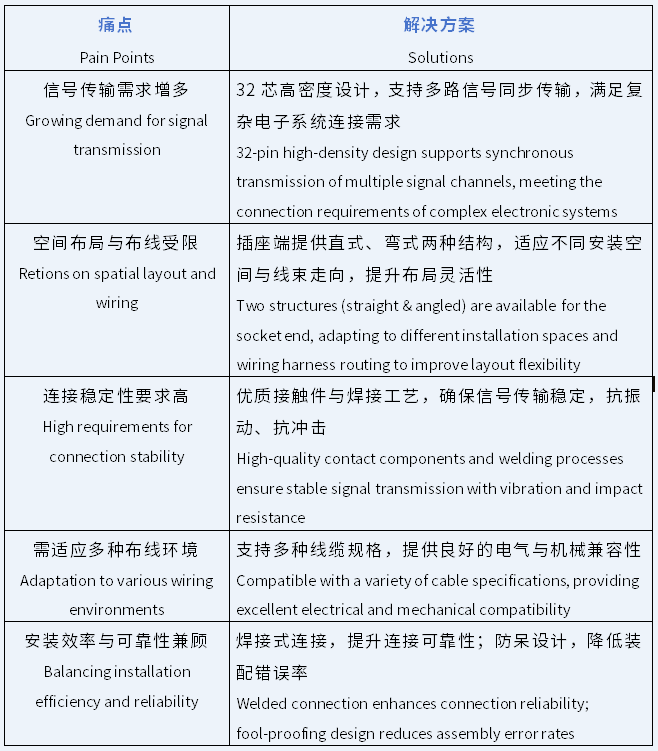

高密度设计 High Density
32芯紧凑布局，在有限空间内支持多路信号传输，提升系统集成度与布线效率。
32-pin compact layout supports multi-channel signal transmission in limited space, enhancing system integration and wiring efficiency.
双结构可选 Dual Configuration Options
插座端提供直式与弯式两种结构，适应不同安装方向与空间限制，为系统布局提供更大自由度。
The socket end features two structures (straight and angled), adapting to different installation orientations and spatial constraints, providing greater freedom in system layout.
结构可选
焊接可靠 Soldered Reliability
采用焊接式连接，接触电阻低、连接稳固，抗振动、抗冲击，确保信号传输长期稳定。
Adopting a soldered connection design, which delivers low contact resistance and stable connection with vibration and impact resistance, ensuring long-term stable signal transmission.
防呆设计 Fool-Proof Design
具备导向结构，避免误插，提升装配效率与系统安全性。
Equipped with a guiding structure to prevent misplugging, which enhances assembly efficiency and system safety.
广泛兼容 Broad Compatibility
支持多种线规与接线方式，适应不同电气架构与信号类型需求。
Compatible with a variety of wire gauges and connection methods, which meets the requirements of different electrical architectures and signal types.
轻量化与低成本 Lightweight & Cost-Effective
结构精简、材料优化，在保证性能的同时实现轻量化与成本控制。
Streamlined structure and optimized materials achieve weight reduction and cost control without compromising performance.
03
产品应用
Product Applications

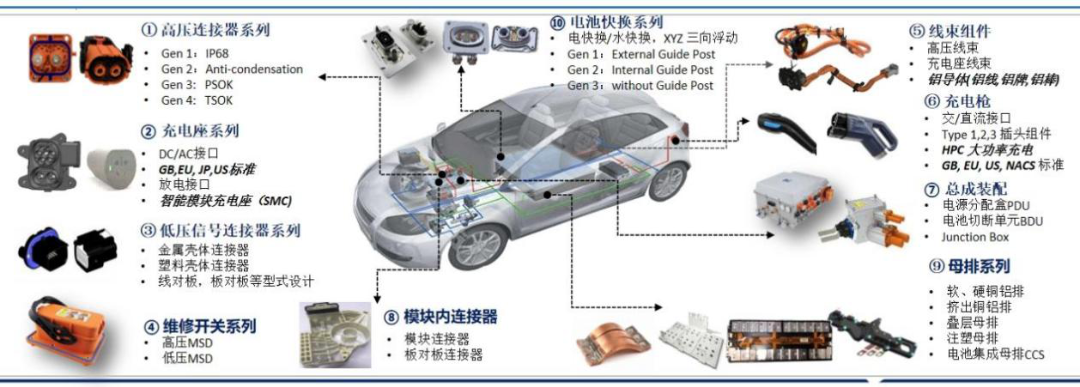

32芯焊板低压信号连接器广泛应用于新能源汽车及传统车辆的电子电气系统中，适用于电池包、高压配电箱、多合一、电机电控等设备间的信号互连，承载整车电气可靠连接的重要使命。
The 32-pin board-mounted low-voltage signal connector is widely used in the electronic and electrical systems of both new energy vehicles and traditional vehicles. It is suitable for signal interconnection between devices such as battery packs, high-voltage distribution boxes, multi-in-one units, and motor electronic controllers, carrying the crucial mission of ensuring reliable electrical connections throughout the entire vehicle.
创新技术引领未来
瑞可达始终秉持技术创新与客户至上的理念，深耕连接系统领域，致力于为全球客户提供高性能、高可靠、高性价比的连接解决方案。连接你我，让信号传输更稳定，让智能出行更可靠。
Recodeal remains committed to technological innovation and customer-centric values, deeply engaged in the field of connectivity systems, and dedicated to providing global customers with high-performance, high-reliability, and cost-effective connection solutions. Connecting You and Me, making signal transmission more stable and intelligent mobility more reliable.
