AI算力持续爆发，数据中心对网络性能与能效的要求持续走高。传统光、电互连架构功耗高、延迟大，带宽也难以进一步拓展，已经难以匹配AI训练、大规模云计算等场景的需求。为解决这一难题，业界正加速推进共封装光学（CPO）/近封装光学（NPO）技术：把光引擎尽量靠近甚至直接与交换/计算芯片封装在一起，大幅缩短信号路径，显著降低功耗，同时实现超高带宽密度与超低延迟。然而传统MPO光纤连接器受尺寸限制，芯数密度偏低，端口部署数量趋近饱和，成为CPO/NPO技术落地的物理阻碍。
在此背景下，中航光电推出UCM（Unified optical fiber connector-MT ferrules）超小型多芯光纤连接器，以更小体积实现更高光纤芯数密度，为数据中心、高端算力集群等高密互连场景，提供稳定可靠、大容量的高速传输解决方案。
AI computing power is booming, pushing data centers to upgrade network performance and energy efficiency. Traditional optical and electrical interconnections suffer from high power consumption, significant latency and poor bandwidth scalability, unable to support AI training and large-scale cloud computing. To address these challenges, the industry is advancing Co-packaged Optics (CPO) and Near-packaged Optics (NPO). By integrating optical engines with switching and computing chips, these technologies shorten signal paths to reduce power consumption and latency while boosting bandwidth density. However, traditional MPO connectors are limited in size and fiber density, with port capacity nearly maxed out and hindering CPO/NPO deployment. Against this backdrop, JONHON has launched the UCM (Unified optical fiber connector-MT ferrules), an ultra-compact multi-fiber connector. It delivers higher fiber density in a smaller footprint, offering a stable, high-capacity high-speed transmission solution for high-density interconnections in data centers and high-end computing clusters.
产品简介
中航光电UCM超小型多芯光纤连接器，专为AI算力集群与CPO/NPO光互连场景打造。产品密度高、光学性能出色，安装灵活且兼容性强，可有效优化机柜布线与空间布局，保障大容量信号稳定高速传输。
JONHON UCM series connectors are designed for AI computing clusters and CPO/NPO optical interconnection scenarios. Featuring ultra-high density and excellent optical performance, they are easy to install and highly compatible. The products optimize cabinet cabling and space utilization, ensuring stable and high-speed transmission of large-capacity signals.

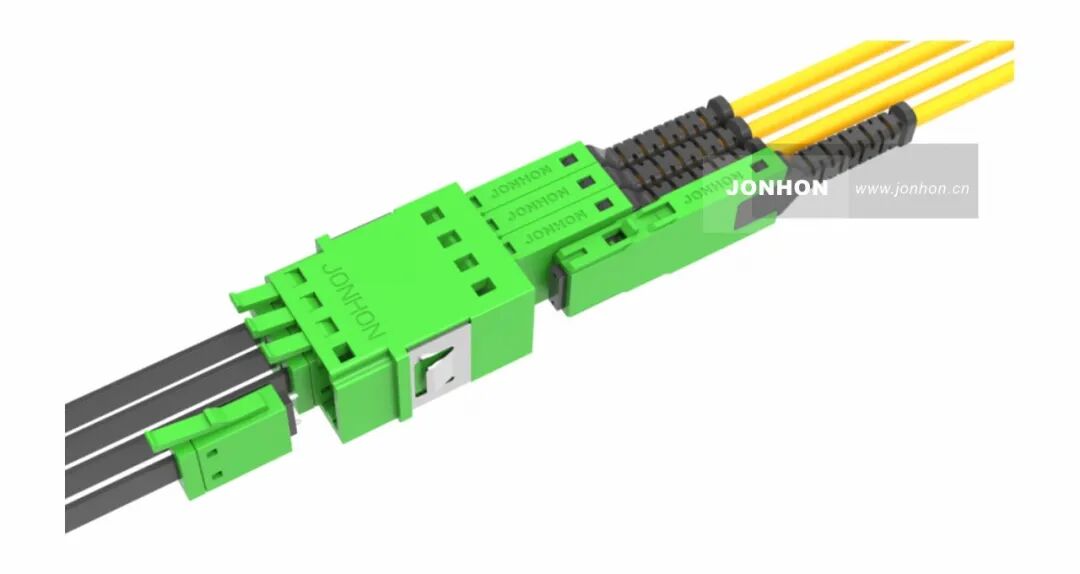

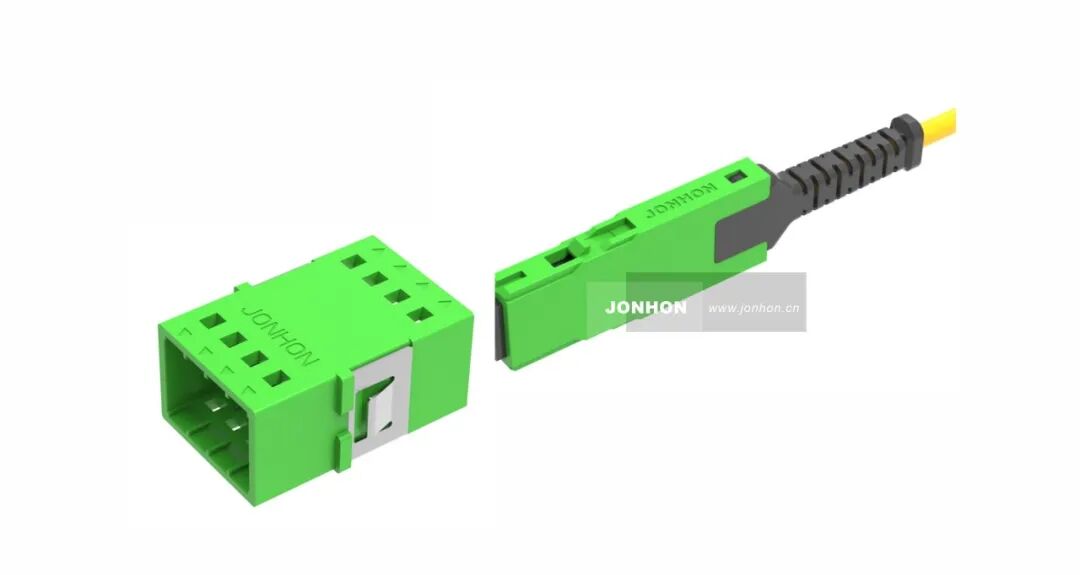

「UCM超小型多芯光纤连接器」
产品亮点
1.超高密度

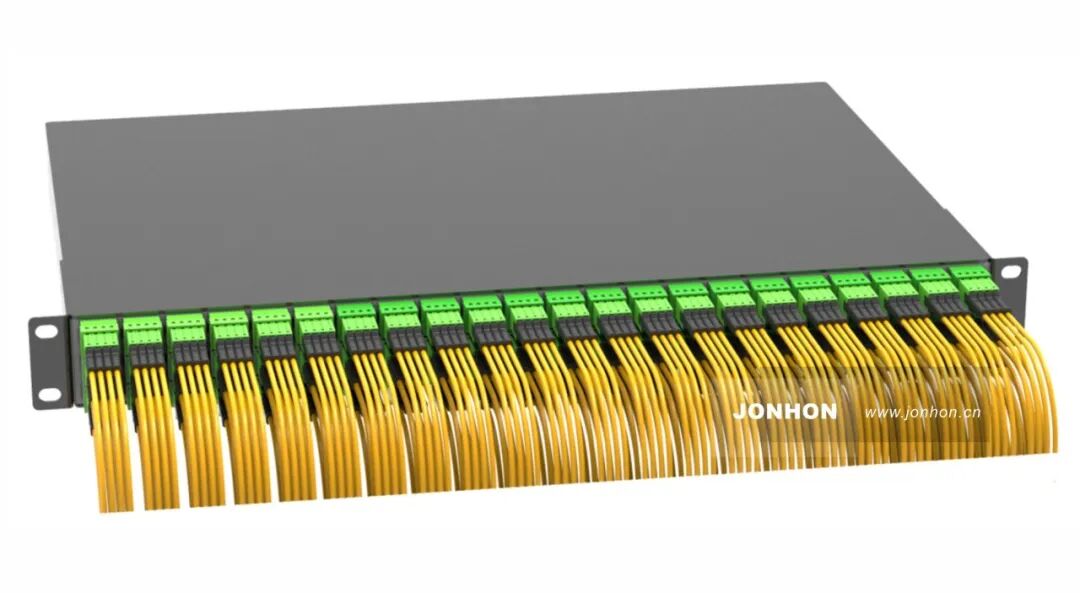

UCM连接器端口密度达到传统MPO产品的3倍。单块1RU面板可集成264个端口，搭配16芯miniMT插芯总计可承载4224根光纤，大幅提升空间利用率，完美化解设备安装空间有限与高带宽传输的应用矛盾。Ultra-high Density
The port density of UCM connectors is three times that of traditional MPO connectors. A single 1RU panel accommodates 264 ports. With 16-fiber miniMT ferrule configuration, it supports up to 4224 optical fibers, greatly improving space efficiency and solving the conflict between limited equipment space and high-bandwidth transmission demands.
2.性能卓越
产品单模、多模插入损耗均≤0.35dB，满足IEC Grade B标准；APC端面回波损耗≥60dB，PC端面回波损耗≥40dB，性能指标优异，全面适配800G、1.6T高速互连及CPO/NPO共封装光学系统。Superior Performance
The insertion loss for both single-mode and multi-mode fibers is ≤0.35 dB, complying with IEC Grade B. The return loss is ≥60 dB for APC and ≥40 dB for PC. It fully supports 800G/1.6T high-speed interconnection and CPO/NPO systems.
3.安装便捷
采用推拉式尾套结构，无需辅助工具即可完成插拔操作，在高密度布线环境中操作灵活，有效提升现场施工与部署效率。Easy Installation
Equipped with a pull-push boot design, the connector allows tool-free mating and unmating. It delivers flexible operation in high-density cabling scenarios and significantly boosts on-site deployment efficiency.
4.兼容性强
标配16芯miniMT插芯，可灵活拓展支持12/24/32多芯规格；兼容200μm、250μm标准光纤，适配2.0~2.6mm外径光缆。产品导销间距与常规MPO保持一致，可直接与标准MPO连接器转接互配。High Compatibility
It comes with a standard 16-fiber miniMT ferrule, and can be extended to 12/24/32 fiber counts. Compatible with 200 μm and 250 μm optical fibers, it suits cables with outer diameters ranging from 2.0 mm to 2.6 mm. The pin pitch is identical to standard MPO, enabling seamless interconnection and adaptation.
产品应用
A.超大规模数据中心& AI算力集群设备光互连
主打高密布线应用，充分释放机柜与面板空间，满足CPO/NPO高密度互连需求。在脊叶拓扑网络中，可减少50%以上线缆，理顺布线、提升散热效率，同时简化运维工作，适配大规模算力设备部署。
Optical Interconnection for Hyperscale Data Centers & AI Computing Clusters
Optimized for high-density cabling, it maximizes cabinet and panel space to meet CPO/NPO interconnection requirements. In leaf-spine topologies, it cuts cabling volume by over 50%, streamlines wiring, improves heat dissipation and simplifies maintenance for large-scale computing deployments.
B. CPO/NPO 板内光互连
适配集成光引擎的CPO/NPO交换机，可在PCB板端实现与光引擎的高密、低损耗连接，打通“光进铜退”短距互连的关键环节。
On-board Optical Interconnection for CPO/NPO
Compatible with CPO/NPO switches integrated with optical engines, it delivers high-density, low-loss connections on PCBs, addressing key challenges of short-reach interconnection in the optical-for-copper migration.
未来，中航光电将紧跟算力扩容、光电集成的发展趋势，深耕超高密度光纤互连领域，依托全链条研发能力，推动光连接技术不断突破，全力保障数据中心、CPO/NPO架构及6G应用的稳健发展。
In the future, JONHON will follow the trends of computing capacity expansion and optoelectronic integration, focusing on ultra-high-density fiber interconnection. With end-to-end R&D strengths, we will drive technological innovation and ensure the sound development of data centers, CPO/NPO and 6G applications.
