随着AI芯片功耗持续攀升、单机算力密度不断突破上限，与之配套的液冷散热组件也正朝着更高散热性能、更小结构尺寸、更优集成封装的方向快速迭代升级。针对高功率PCIe式GPU的散热需求，中航光电推出可插拔式GPU液冷组件，将液冷板与单张GPU实现一体化集成绑定，支持单卡独立运维，兼具高效散热与便捷维护双重核心优势。
As AI chip power consumption continues to rise and single-server computing density keeps breaking limits, supporting liquid cooling assemblies are rapidly evolving toward higher heat dissipation performance, smaller structural size and better integrated packaging. To address the stringent cooling demands of high-power PCIe GPUs, JONHON has launched a pluggable GPU liquid cooling assembly that integrates the cold plate with a single GPU into one unit, enabling independent per-card operation and maintenance while delivering both high cooling efficiency and convenient service.
产品简介
中航光电可插拔式GPU液冷组件，是专为高功率PCIe式GPU打造的核心散热部件，可实现单卡一体化高效散热与独立运维，广泛适配智算中心、AI服务器、高密度计算集群等场景。
JONHON''s pluggable GPU liquid cooling assembly is a core thermal management component designed specifically for high-power PCIe GPUs, enabling integrated high-efficiency cooling and independent OAM for a single GPU card, and is widely applicable to intelligent computing centers, AI servers and high-density computing clusters.

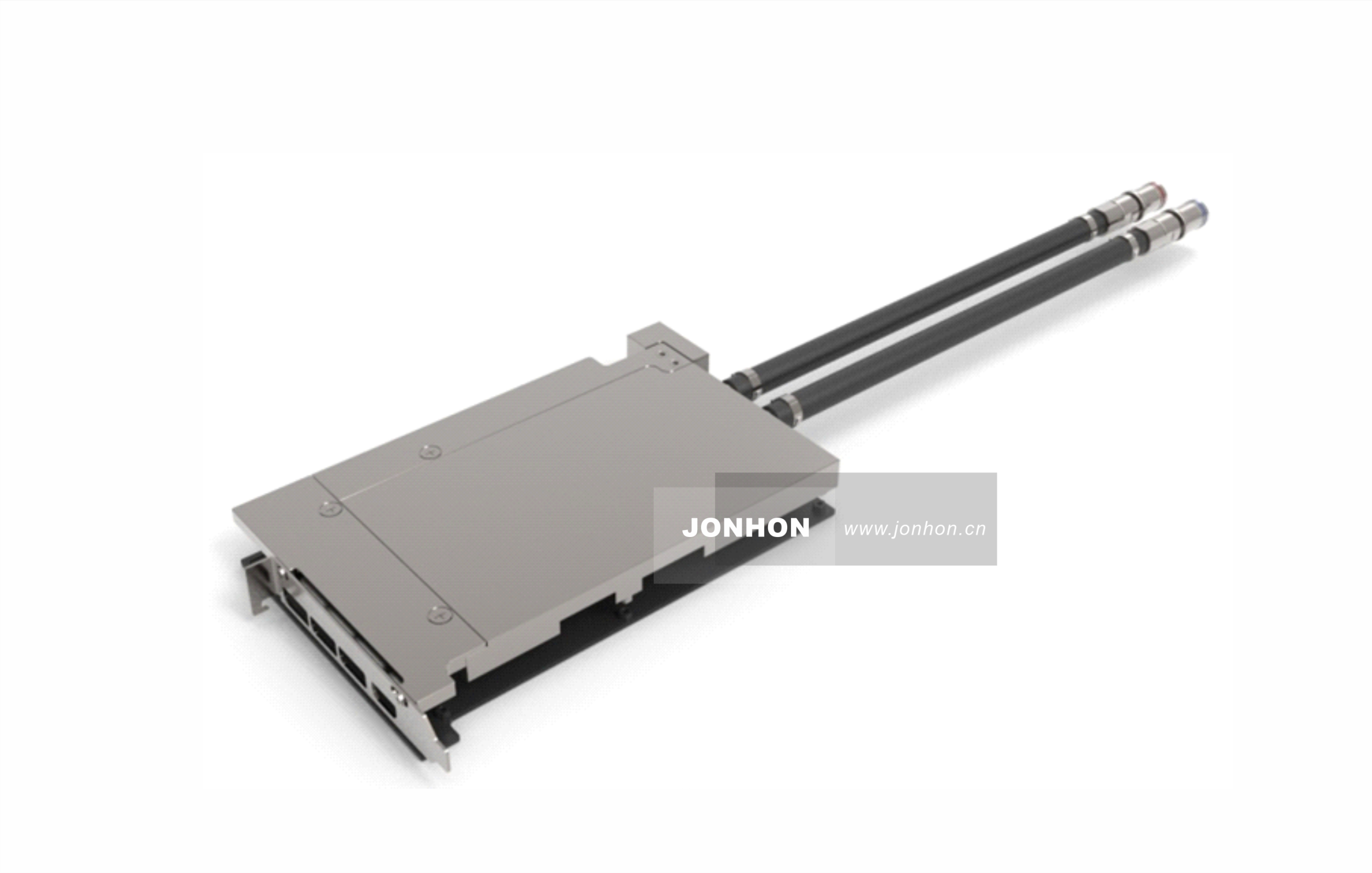

「可插拔式GPU液冷组件」
产品亮点
1.散热高效优异：液冷板采用铲齿成型工艺，齿片结构显著增大换热面积，散热效率可达100W/cm2以上，完美满足AI服务器高算力场景的严苛散热需求。
Excellent Heat Dissipation
Adopting pin-fin manufacturing technology, the liquid cooling plate significantly increases the heat exchange area, with thermal efficiency exceeding 100W/cm2, fully meeting the stringent cooling requirements of high-computing AI servers.
2.结构稳定可靠：采用焊接成型工艺，液冷板耐压值超1MPa；并通过无损检测、密封性、清洁度、介质兼容性等多项专业验证，全面保障产品长期稳定运行。
Reliable & Durable Structure
Featuring welded construction, the liquid cooling plate withstands pressures over 1MPa. It passes professional tests including NDT, sealing, cleanliness and fluid compatibility, ensuring long-term stable performance.
3.适配灵活广泛：内部铲齿结构可按需灵活定制，翅片间距最小可达0.1mm；搭配全系列液冷快插接头，产品体积紧凑、安装简便，有效提升服务器内部空间利用率。
Wide Compatibility
Internal pin-fin structure is customizable, with fin spacing as small as 0.1mm. Equipped with full-range liquid cooling quick connectors, it features a compact size and easy installation, maximizing server interior space utilization.
4.维护便捷高效：支持服务器内单个液冷组件自由插拔，可实现单液冷GPU卡模组独立安装和维护，大幅降低运维难度和成本。Easy & Efficient Maintenance
Supports independent plug-in and removal of single assemblies, enabling separate installation and maintenance of GPU liquid cooling modules, greatly reducing operation complexity and cost.
5.量产稳定可控：采用前端标准化设计，后端实现高度自动化生产、精益化产线布局、信息化数据采集与智能物流周转；液冷板月产能超6万套，确保批量交付稳定性与成本优势。
Stable Mass Production & Cost Efficiency
Standardized design enables highly automated production, lean layout and intelligent logistics. Monthly capacity exceeds 60,000 units, ensuring stable batch supply and cost competitiveness.
未来，中航光电将加速拥抱AI算力发展，持续深耕数据中心液冷散热领域，深化液冷技术创新，加快产品迭代升级，凭借全链条液冷散热解决方案，推动液冷行业高质量发展，为智算中心绿色高效运行提供强劲赋能。
In the future, JONHON will actively embrace the development of AI computing power, continue to focus on the liquid cooling sector for data centers, deepen technological innovation in liquid cooling, and accelerate product iteration and upgrading. With full-chain liquid cooling solutions, we will promote the high-quality development of the liquid cooling industry and strongly empower the green and efficient operation of intelligent computing centers.
